Electric Motor Boat Engine

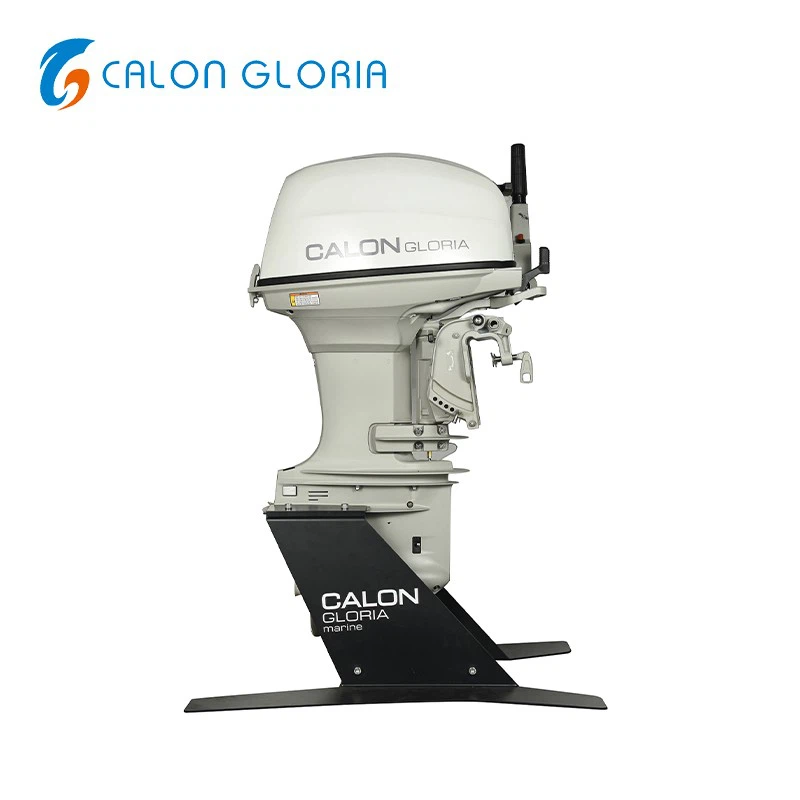

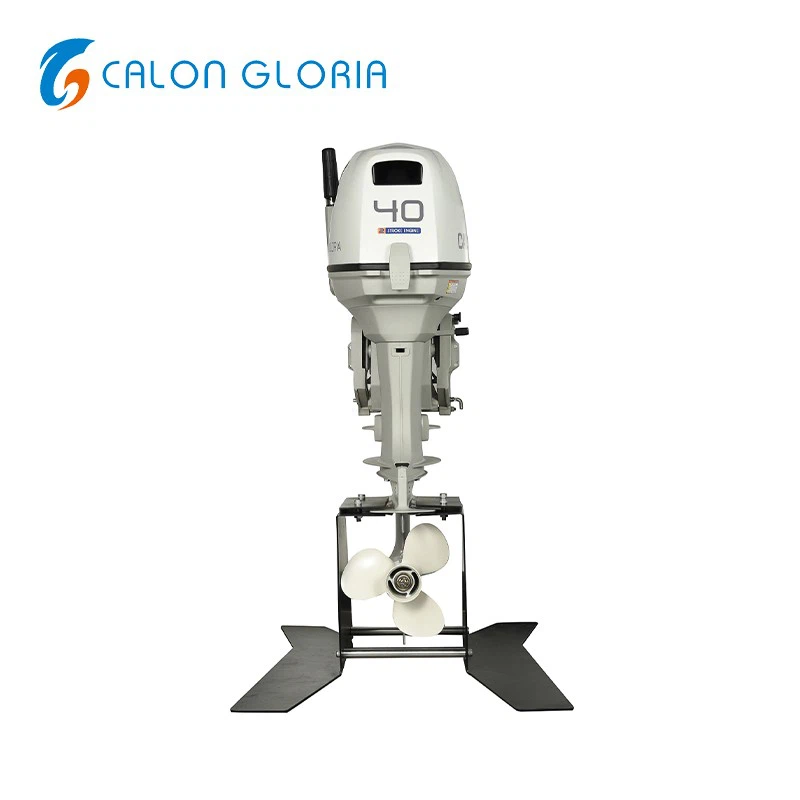

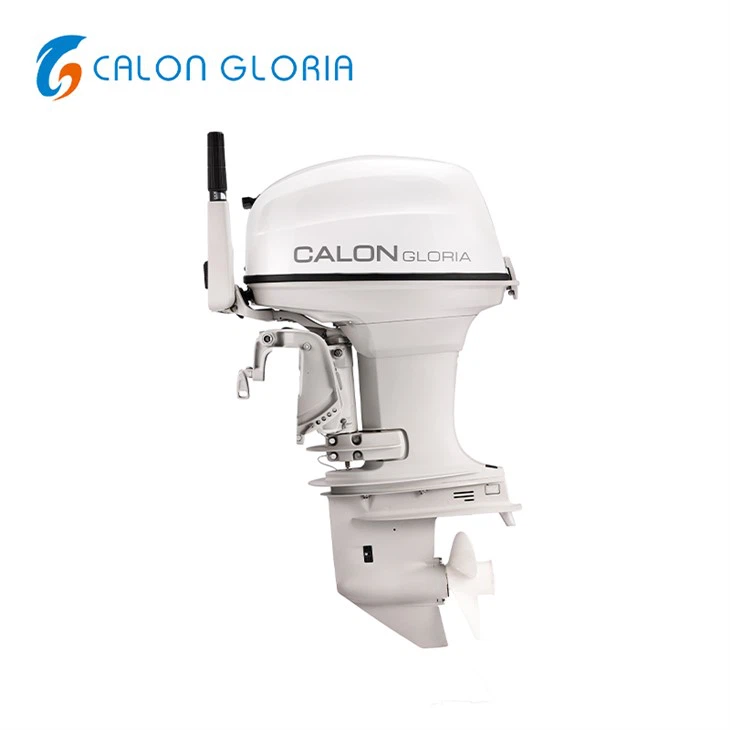

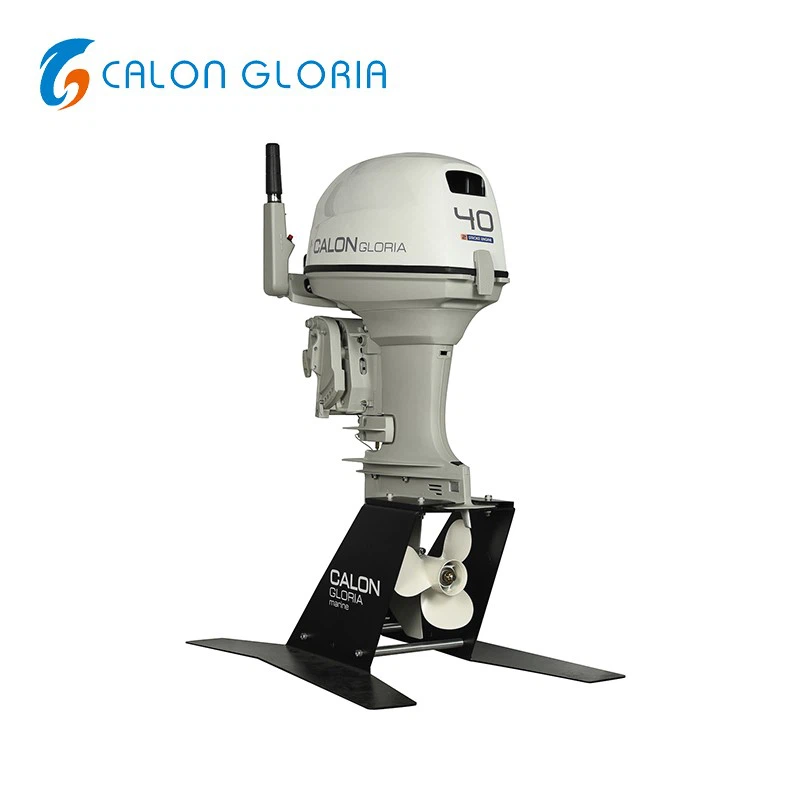

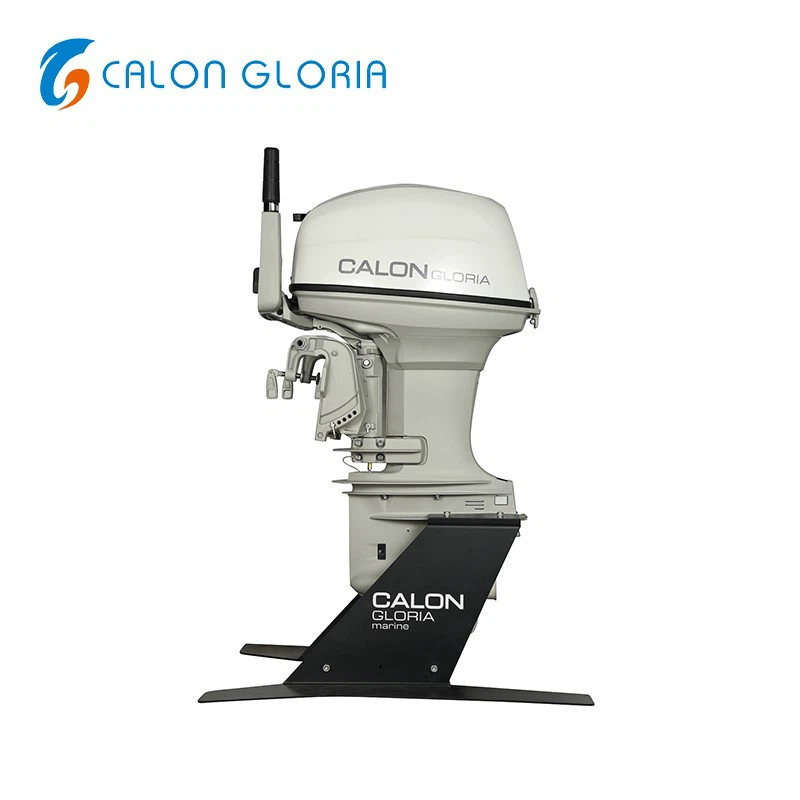

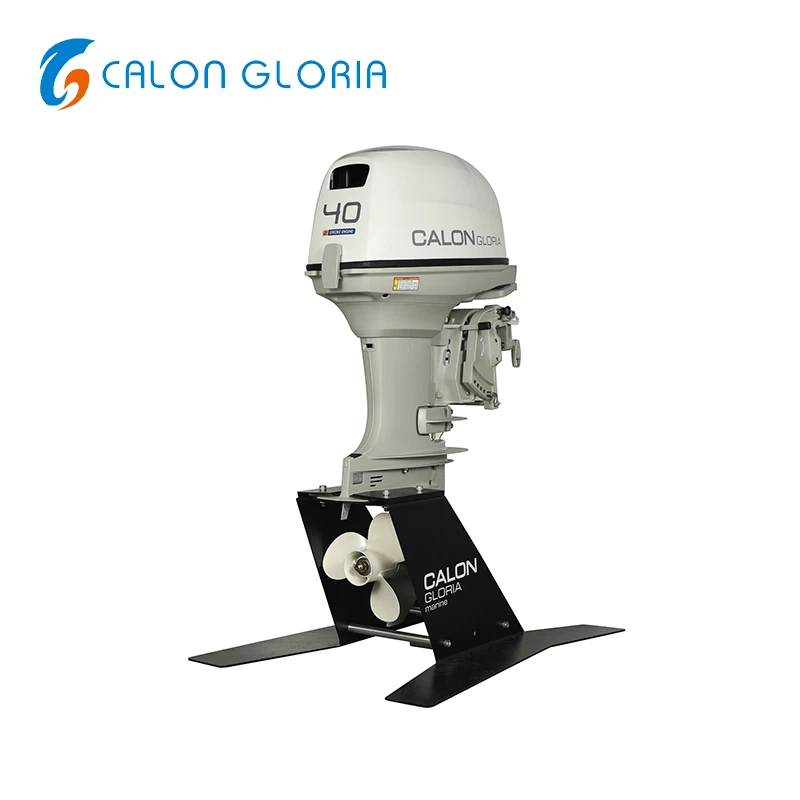

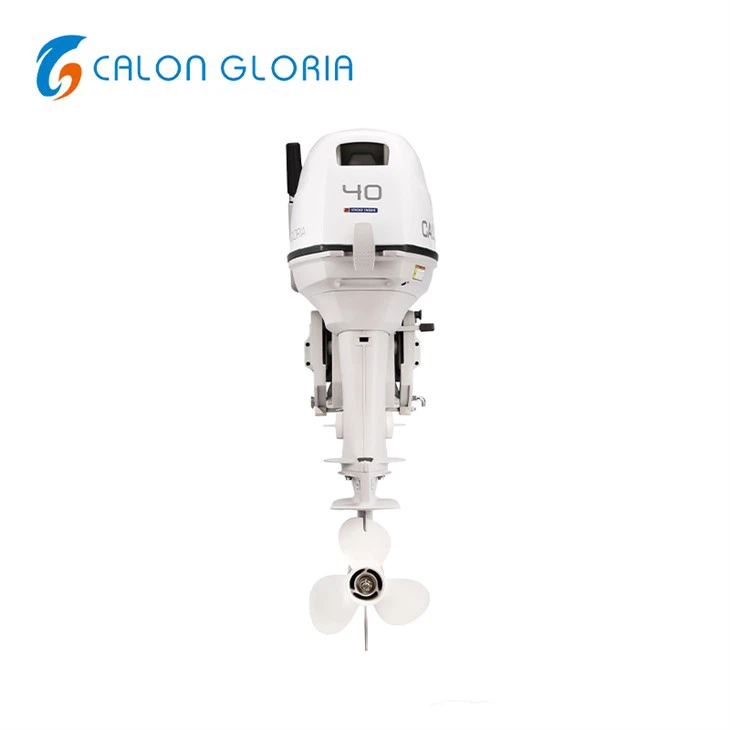

40HP ELECTRIC OUTBOARD MOTOR
-Silent operation, zero emissions, and no need for manual start-up.
-Experience smooth boating while protecting the environment.
-Spend more time enjoying the water and less on expensive engine maintenance.
Send Inquiry

Description

Technical Parameters

ABOUT OUTBOARDS



The E40 electric outboard motor is an excellent choice for eco-conscious boaters seeking a sustainable and energy-efficient solution. As an advanced electric motor boat engine, it delivers impressive power while significantly reducing carbon emissions compared to traditional gasoline engines. This electric motor boat engine is designed with energy efficiency in mind, offering longer operational hours per charge and reducing overall fuel consumption. Its environmentally friendly design not only lowers the environmental impact but also minimizes noise and vibration, providing a quieter and more peaceful boating experience. With its powerful performance and green energy benefits, the 40HP electric motor boat engine is the ideal choice for those looking to combine power and sustainability.



MOT0734

Environmentally Friendly

Zero emissions during use

No fuel spills or exhaust pollution

Ultra Quiet Operation

Near-silent running, ideal for fishing and nature trips

Reduces noise pollution on the water

Low Operating Costs

No fuel required

Minimal maintenance (no oil changes, fewer moving parts)

Easy to Use

Simple push-button start or throttle control

Lightweight and easy to mount on small boats

High Energy Efficiency

Converts more energy into propulsion with less waste

Ideal for short to medium-distance travel on calm waters

Compact & Portable

Space-saving design, easy to transport and store

Great for inflatable boats, kayaks, or small fishing boats

Regulatory Friendly

Permitted in lakes and waterways with restrictions on gas engines

No license required in some regions (depending on power)







Details

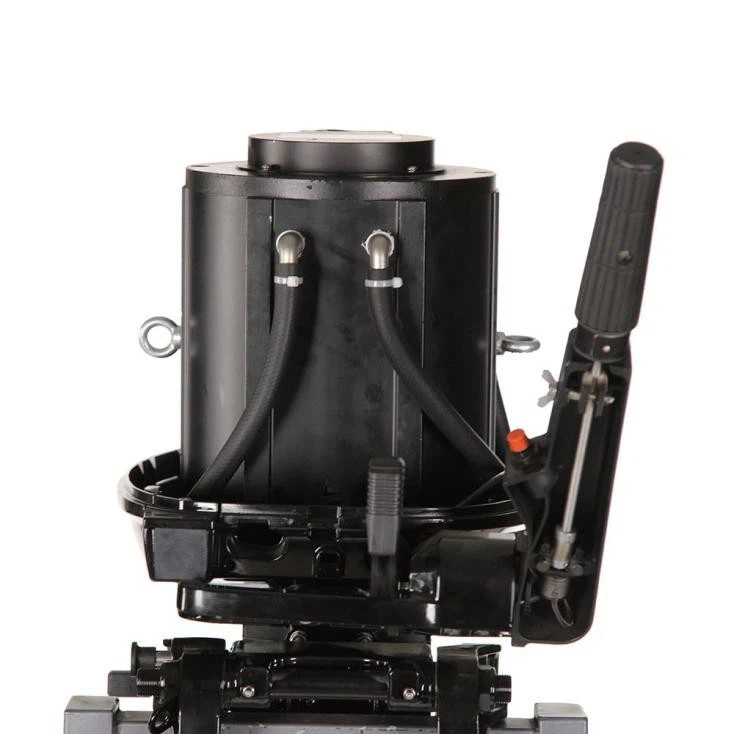

product-734-734
product-734-734

Our company

1





Zhejiang Canglong Power Machinery Co., Ltd

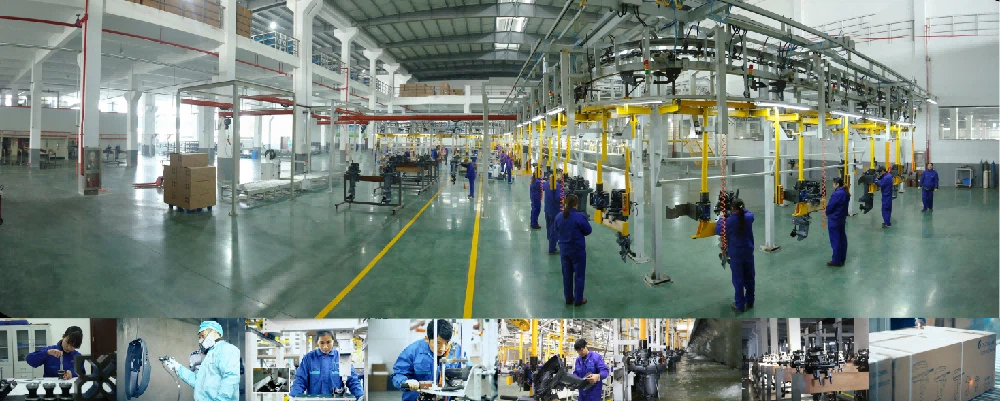

  Zhejiang Canglong Power Machinery Co., Ltd., widely recognized under the brand name CALON GLORIA, was originally established in Huzhou in 2016. As the company expanded rapidly, significant investments were made to support its growth. In particular, a total of USD 18 million was allocated to construct a modern manufacturing facility spanning 15,000 square meters, enhancing both production capacity and operational efficiency.

  In 2020, to further optimize logistics and talent recruitment, the company was strategically relocated to Haining, Jiaxing, a city known for its thriving industrial base and convenient transportation network.

  CALON GLORIA has become a leading manufacturer of outboard motors, specializing in high-performance gasoline and electric engines. Driven by a commitment to innovation and excellence, we have successively developed a full range of 2-stroke, 4-stroke, and electric outboard motors, catering to both recreational and commercial marine markets.

  As of July 24, 2023, we have been granted 25 patents, covering key technological innovations such as:

  • Outboard motor oil supply system devices
  • Yaw angle testing apparatus
  • Underwater gear nut fastening and tightening mechanisms

  These achievements reflect our strong in-house R&D capabilities and continuous pursuit of technological advancement in the marine propulsion field.

  At CALON GLORIA, we are dedicated to delivering reliable, efficient, and environmentally conscious solutions for boaters around the world.



Trade Show

Russia
Tianjin1

We actively participate in domestic and international trade shows to showcase our latest outboard motor innovations and connect with global partners. Through exhibitions across China, Russia, Germany, Moscow and beyond, CALON GLORIA continues to expand its presence in the marine industry. These events not only strengthen our brand visibility, but also allow us to engage directly with customers, gather feedback, and stay aligned with market trends.



Buyer show

2
8
1

We value every voice from our customers. Over the years, CALON GLORIA outboard motors have earned consistent praise for their performance, reliability, and ease of use. Clients from around the world have shared positive feedback after using our products for fishing, leisure, and commercial applications. Their satisfaction inspires us to keep improving and delivering marine engines that meet real-world needs.

FAQ



Q: Are electric outboard motors more expensive than gasoline models?

A: Although electric outboard motors often have a higher initial purchase cost compared to gasoline engines of similar horsepower-primarily due to the battery-this cost is largely balanced out over time by significantly lower operating expenses. Recharging an electric motor is much cheaper than refueling a gasoline-powered one, especially considering the latter's relatively lower fuel efficiency.

Electric outboards also have fewer mechanical components, which means less maintenance, fewer breakdowns, and reduced long-term servicing costs. Despite the upfront investment, electric motors tend to offer greater overall value throughout their lifespan. With fuel prices continuing to rise, the cost-efficiency of electric propulsion becomes increasingly attractive for both recreational and commercial users.



Q: Will hybrid systems address the range limitations of electric outboard motors?

A: Hybrid propulsion systems, which integrate electric motors with conventional internal combustion engines, are becoming increasingly popular in both the marine and automotive sectors. These systems help enhance fuel efficiency while also addressing the range limitations often associated with fully electric outboards.

However, due to their more complex design and dual-power integration, hybrid systems usually come with a higher price tag. While they are well-suited for larger vessels that require longer cruising capabilities, the additional cost may not be justified for smaller boats or those used occasionally.



Hot Tags: electric motor boat engine, China electric motor boat engine manufacturers, suppliers, factory, 25hp Outboard Engine, 15hp Outboard Motor, Outboard Engine For Dinghy, 4 Outboard Engine Boat, Reliable Outboard Motors, Gas Outboard Engine

40HP ELECTRIC OUTBOARD MOTOR



The 40HP electric outboard motors deliver powerful, eco-friendly performance for recreational boating. With quiet operation and zero emissions, they enhance the boating experience while reducing maintenance costs. Though their range is more limited and recharging time is longer, these motors are a top choice for environmentally conscious boaters seeking reliable and efficient power. The combination of sustainability and dependable performance makes them a standout option for those who prioritize both top-tier performance and environmental responsibility. Ideal for a greener boating experience, the 40HP electric outboard motors meet the demands of modern, eco-aware boaters.



Electric Outboard Motor
Model: E40
Motor Rated Power: 30Kw
Rated Output Current: 70A
Peak Output Current: 105A
Input Voltage Range: DC290V~DC500V
Motor Type: Permanent Magnet Synchronous Motor
Control Method: Closed-loop Vector Control
Peak Torque: 147Nm
Rated Torque: 98Nm
Rated Speed: 5900rpm
Gears: F - N - R
Gear Ratio: 26:13:00
Cooling Method: Water Cooling
Battery Pack (Recommended Configuration):
Nominal Voltage: DC409.6V
Nominal Capacity: 105 Ah, 1C Charge/Discharge
Nominal Energy: 43.01kWh
Voltage Range: DC364.8V~DC460.8V
Weight: 325土15Kg
Charging Time: Fast Charge 60 kW, approximately 45 minutes;
Slow Charge 4 kW, approximately 10 hours
Endurance Time and Distance (Water Flow Speed 0): (Half Throttle) E40 about 340 minutes, approximately 55-60 KM
(Full Throttle) E40 about 80 minutes, approximately 30-36 KM

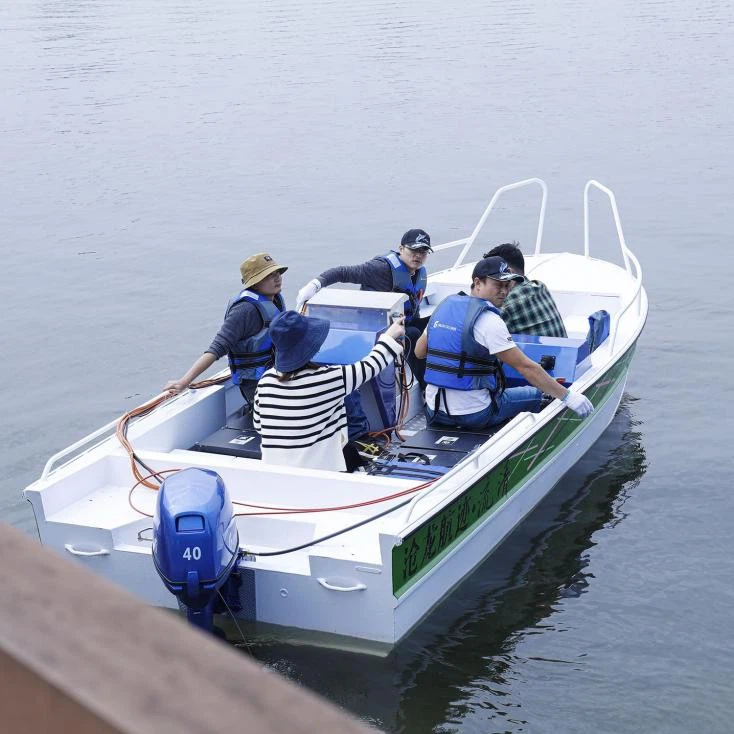

The above test results are based on: a 5.2-meter fiberglass inflatable boat + a 43 kWh battery pack + 3 personnel. At full throttle, the maximum speed is 30 km/h, with a stable cruising speed of 27.5 km/h. At half throttle, the cruising speed is 11 km/h.
