T30 Spare Parts:Electrical Remote Tiller
Oct 28, 2025
Leave a message

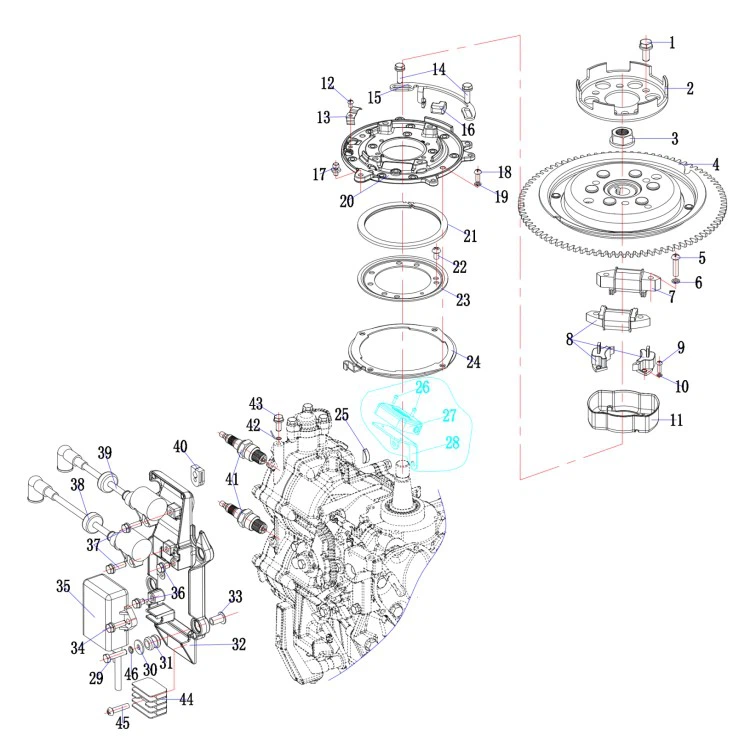

| CALON GLORIA T30W | ||||||
| REF NO | Material code | PART CODE | DESCRIPTION(EN) | UNIT | PACKAGE | YAMAHA |
| 1 | C4010290 | GB/T9074.14(BXG) | Bolt With Washer M8×16 | 3 | 90105-08M10 | |
| 2 | C3070607 | T30-01.03.01 | Starter Hub | 1 | 6F5-15723-01 | |
| 3 | C3020515 | T20-01.03.01 | Flywheel Nut | 1 | 90178-16M05 | |
| 4 | C3030609 | T30W-01.03.02 | Flying Wheel(Electric Start) | 1 | ||
| 5 | C4010398 | GB/T823 | Screw,Pan Head M6×25 | 4 | 67607-06125 | |
| 6 | C4010604 | GB/T93 | Spring Washer | 4 | ||
| 7 | C3030603 | T30-01.03.04 | Lighting Coil Assy. | 1 | 61N-81313-09 | |
| 8 | C3030604 | T30-01.03.05 | Trigger Ignition Assembly | 1 | 69P-85541-09\61N-85543-09\61N-85543-19 | |
| 9 | C4010385 | GB/T818 | Screw,Pan Head M4×10 | 4 | 97607-04112 | |
| 10 | C4010602 | GB/T93 | Spring Washer | 4 | ||
| 11 | C3070608 | T30-01.03.06 | Trigger Mount | 1 | 61N-85537-00 | |
| 12 | C4010399 | GB/T818(BXG) | Screw,Pan Head M4×6 | 1 | 97802-04006 | |
| 13 | C3070609 | T30-01.03.07 | Plate | 1 | 6E9-81328-70 | |
| 14 | C4010277 | GB/T9074.14(BXG) | Bolt With Washer M6×10 | 2 | 97095-06010 | |
| 15 | C3070610 | T30-01.03.08 | Bracket | 1 | 61N-41615-00 | |
| 16 | C3050603 | T30-01.03.09 | Rubber Pad | 1 | 61T-44194-01 | |
| 17 | C3020625 | T30-01.03.22 | Bolt,Ball Head | 1 | 663-85518-00 | |
| 18 | C4010315 | GB/T818 | Screw,Pan Head M5×12 | 4 | ||
| 19 | C4010603 | GB/T93 | Spring Washer | 4 | ||
| 20 | C3010606 | T30-01.03.12 | Magneto Seat | 1 | 69P-85561-00 | |
| 21 | C3060609 | T30-01.03.10 | Washer | 1 | 676-41611-00 | |
| 22 | C40104104 | GB/T823 | Screw,Pan Head M6×10 | 4 | 97880-06010 | |
| 23 | C3070611 | T30-01.03.11 | Plate | 1 | 689-41612-01 | |
| 24 | C3070612 | T30-01.03.13 | Fixed Plate | 1 | 676-41613-00 | |
| 25 | C3040513 | T20-01.06.23 | Woodruff Key, Crankshaft | 1 | 90280-05015 | |
| 26 | C4010331 | GB/T823 | Screw,Pan Head M3×8 | 2 | Optional | |
| 27 | C3030501 | T20-01.03.19.00 | Timer Assy. | 1 | Optional | |
| 28 | C3070642 | T30-01.03.21 | Bracket,Timer | 1 | Optional | |
| 29 | C4010117 | GB/T5783 | Bolt M6×30 | 4 | 90119-06M95 | |
| 30 | C4010506 | GB/T96 | Washer | 4 | 90201-06M30 | |
| 31 | C3050708 | T40-01.03.12 | Damper Pad | 4 | 61N-82317-00 | |
| 32 | C3010607 | T30-01.03.20 | Mounting Frame | 1 | 61N-85542-00-94 | |
| 33 | C3020708 | T40-01.03.11 | Spacer Tube | 4 | 624-42542-00 | |
| 34 | C4010281 | GB/T9074.14(BXG) | Bolt With Washer M6×20 | 2 | 97095-06020 | |
| 35 | C3030608 | T30-01.03.17 | CDI | 1 | 61N-85540-13 | |
| 36 | C4010277 | GB/T9074.14(BXG) | Bolt With Washer M6×10 | 2 | 97095-06010 | |
| 37 | C4010281 | GB/T9074.14(BXG) | Bolt With Washer M6×20 | 2 | 97095-06020 | |
| 38 | C3030606 | T30-01.03.15 | Ignition Coil B | 1 | 61N-85570-00 | |
| 39 | C3030605 | T30-01.03.14 | Ignition Coil A | 1 | 61N-85570-00 | |
| 40 | C3050604 | T30-01.03.18 | Bracket Wire Clip | 1 | 6H3-81922-00 | |
| 41 | C3030607 | T30-01.03.16 | Spark Plug BR8HS-10 | 2 | 94702-00247 | |
| 42 | C3030507 | T20-01.03.15 | Groud Wire | 1 | 61N-82519-01 | |
| 43 | C4010277 | GB/T9074.14(BXG) | Bolt M6×10 | 1 | 97090-06012 | |
| 44 | C3030519 | T20W-01.03.24 | Rectifier | 1 | 664-81970-61 | |
| 45 | C4010326 | GB/T818 | Screw,Pan Head M6×25 | 1 | ||
| 46 | C4010604 | GB/T93 | Spring Washer | 4 | ||
