ABOUT OUTBOARDS

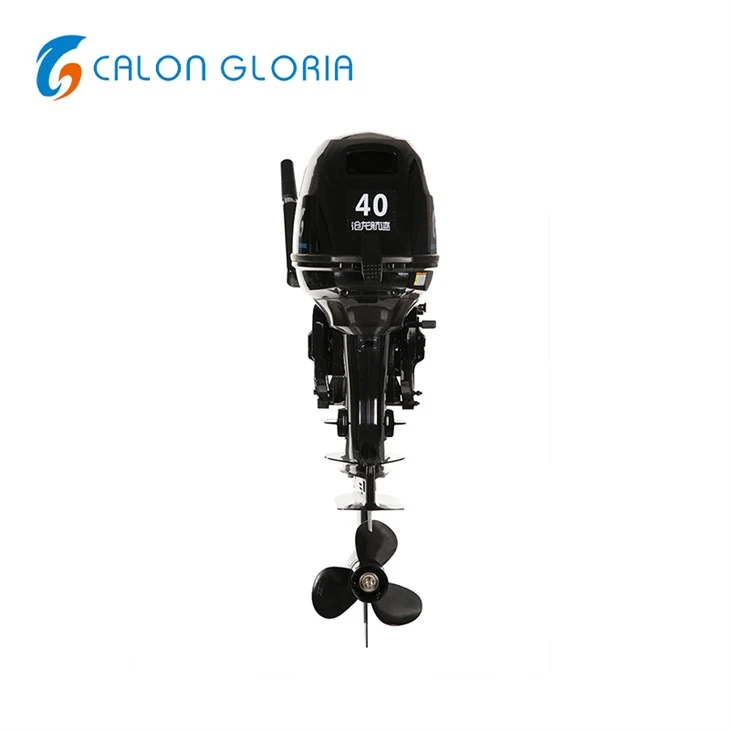

The CALON GLORIA 2-Stroke 40HP Long Shaft Outboard Engine offers powerful performance for a range of watercraft, from fishing boats to cruisers. Built with quality and reliability in mind, this 40HP engine delivers strong acceleration with a long shaft for enhanced propeller depth, ideal for rough waters.
Featuring advanced technology like CDI for reliable starts and smooth running, and Precision Blend Oil Injection for optimal fuel and oil mixing, this 40HP outboard motor maximizes efficiency and performance. Whether you're a dedicated angler or a casual boater, the CALON GLORIA 40HP outboard engine provides the power you need for a great experience on the water.

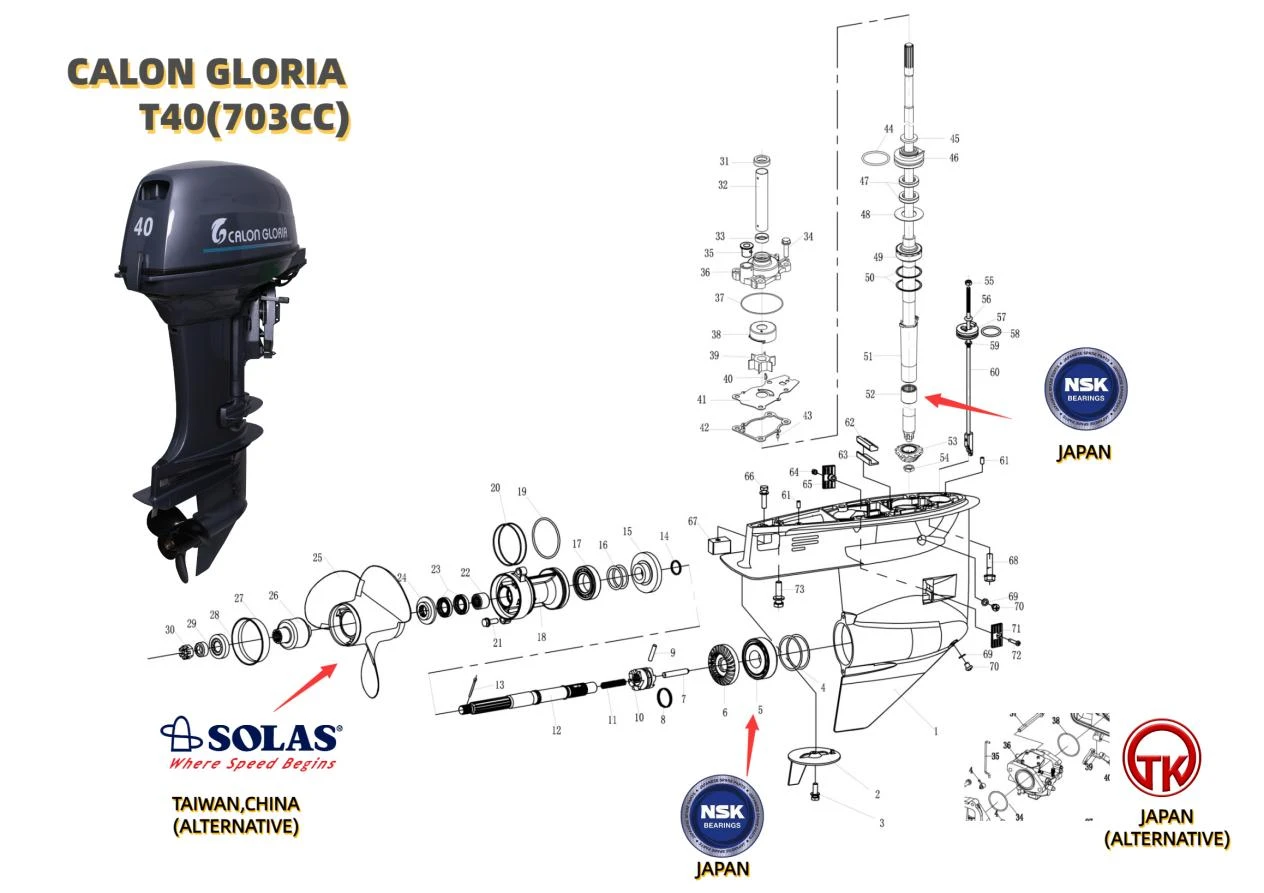

Spare Parts

Company Introduction
Founded in 2016 in Huzhou with an initial investment of five million dollars, Zhejiang Canglong Power Machinery Co., Ltd. (known as CALON GLORIA) was established with advanced production equipment and a skilled R&D team.

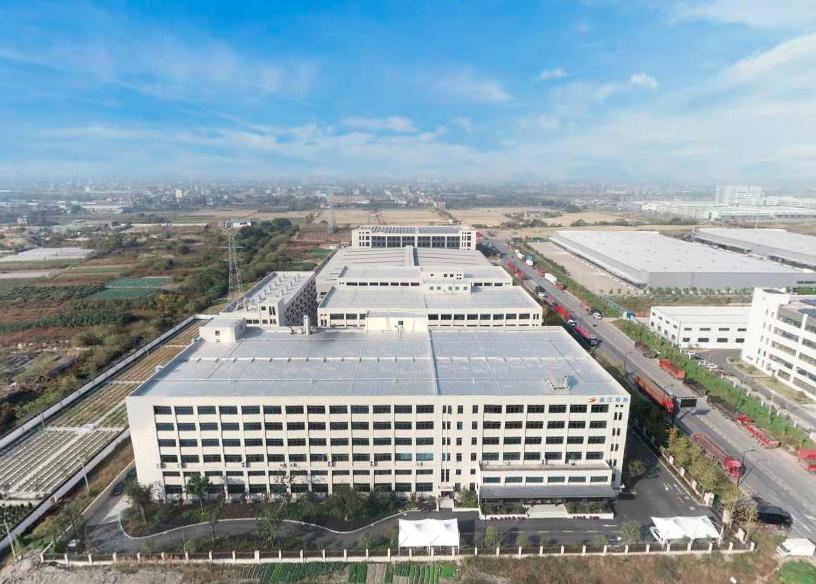

As the business expanded, the owner of CALON GLORIA invested an additional eighteen million dollars to construct a new 15,000㎡production facility. In 2020, the company was reorganized and relocated to Haining, Jiaxing.
Guided by a commitment to excellence, we have launched a range of outboards: 2-stroke models (3hp, 5hp, 9.8hp, 15hp, 20hp, 30hp, and 40hp), 4-stroke models (6hp, 20hp, 60hp EFI), and an electric outboard (40hp). Our efforts in technological innovation have also yielded significant results. As of July 24, 2023, we have obtained 25 patents, covering areas such as outboard motor oil supply systems, yaw testing devices, and underwater gear nut fastening systems. In response to issues of virtual horsepower labeling in the market, we have consistently adhered to the principle of genuine horsepower, earning increasing praise from consumers.


Since our establishment, we have been actively engaged in public welfare activities, taking the initiative to fulfill our corporate social responsibility. Over the years, we have partnered with various public welfare organizations, including Shuguang Rescue, Blue Sky Rescue, the China Red Cross Volunteer Association, Min'an Rescue, and Renze Rescue.
Customer Photos

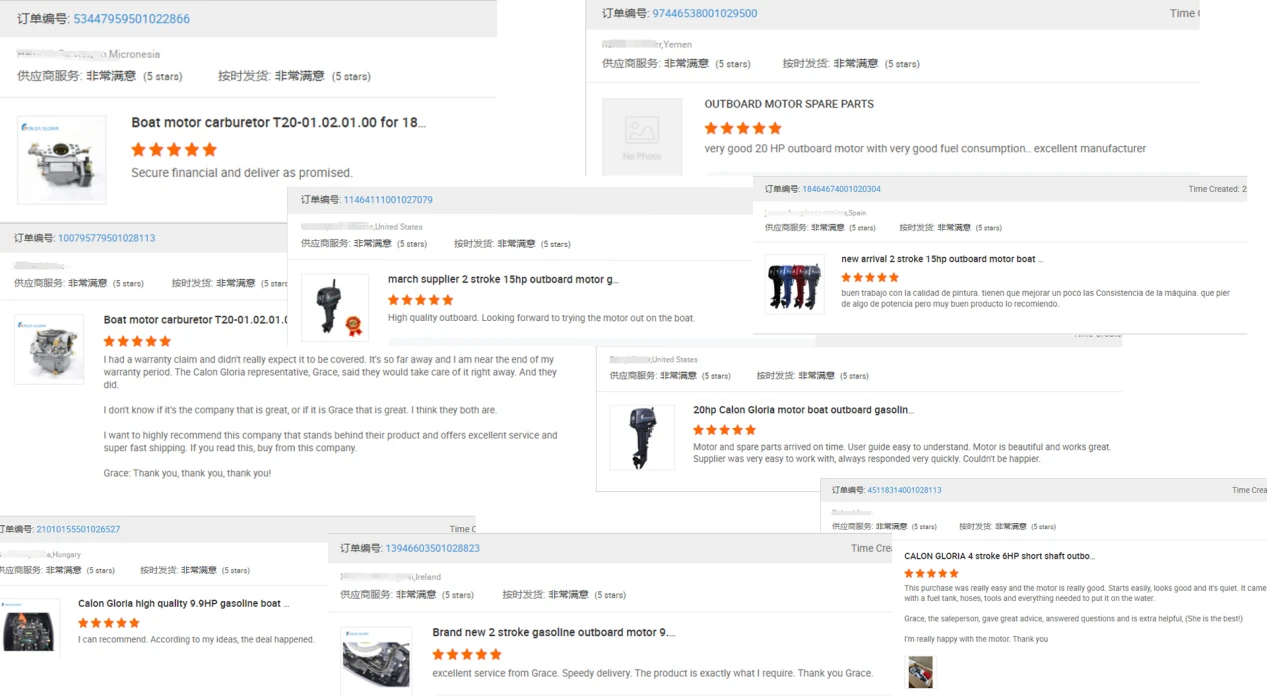

Reviews

2 Stroke Outboard Quick Start Guide
- Install the outboard with the anti-cavitation plate 25mm below the boat bottom; ensure engine casing fits the boat.
- Use unleaded gasoline, #92 or higher.
- Recommended 2-stroke engine oil: TC-W3.
- Recommended gear oil: GL-4 80W90.
- Fuel mixture:
- First 10 hours: 25:1 (gasoline : 2-stroke oil)
- After 10 hours: 50:1 (gasoline :2-stroke oil)
- Change gear oil after 10 hours, then every 50 hours (check for water regularly).
Hot Tags: 40 hp outboard engine, China 40 hp outboard engine manufacturers, suppliers, factory, Mini Outboard Engine, Boat Trader Outboard Motors, Inboard Or Outboard Engine, 2 Stroke Outboard Engines, 25hp Outboard Engine, Outboard Marine Engine
2 STROKE 40HP OUTBOARD MOTOR
OPTIONAL MODELS:
T40BS --- Tiller Control; Manual Start; Short Shaft
T40BL--- Tiller Control; Manual Start; Long Shaft
T40BWS--- Tiller Control; Electric Start; Short Shaft
T40BWL--- Tiller Control; Electric Start; Long Shaft
T40FWS--- Remote Control; Electric Start; Short Shaft
T40FWL--- Remote Control; Electric Start; Long Shaft
T40FWTS--- Remote Control; Electric Start; Electric Tilt; Short Shaft
T40FWTL--- Remote Control; Electric Start; Electric Tilt; Long Shaft
| Model | T40 |
| Transom Height | S:424mm L:550mm |
| Dry Weight | 76 -78kg |
| Max. RPM range | 4500~5500r/min |
| Max. outpower | 29.4kW(40HP) |
| Idling RPM range | 1100±50 r/min |
| Engine Type | 2-cyl. |
| Displacement | 703cc |
| Bore X Stroke | 80.0 ×70.0 mm |
| Ignition Timing | CDI |
| Steering System | Tiller Control & Remote Control |
| Starting System | Manual Start & Electric Start |
| Gear Shift | F-N-R |
| Gear Ratio | 2 |
| Trim &Tilt | Manual tilt & Electric Tilt |
| Fuel Tank Capacity | 24L |
| Gear Oil Capacity | 0.43 L |
| Lubrication System | 50:1 (Fuel Oil) |
| Propeller | 11 1/8*13 in. |
